Today I completed the vision instance installation of Oracle R12.1.1 on Linux machine. I had some hiccups but finally were able to resolve all the error and got the login page successfully. I will be covering all the installation steps in this blog – all the issues faced, their resolutions etc.
Oracle R12 Version – 12.1.1
OS – RHEL5 update 3
Single Node and Multi user Installation.
Metalink Note ID followed – 761566.1
Before starting installation, pls make sure all the below packages/utility is installed
- ar
- gcc
- g++
- ld
- ksh
- make
- X Display server
Installation size of Oracle E-business Suite 12.1.1
- Fresh install with Vision demo database – 243 GB (Application Tier FS – 35 GB + DB Tier FS – 208 GB)
- For my envionment
- /d02 –> Application and Database FS – 350 GB
- Staging Area
- /d03 –> Oracle provided media will be copied into the respective directory structure
- My staging area consists of
- /d03/R12.1.1_X86
- startCD
- oraAS
- oraDB
- oraAppsDB
- oraApps
- /d03/R12.1.1_X86
- OS User and Group
- created a group called ‘dbaerp’ and created 2 users – ‘applerp’ (application user) and ‘oraerp’ (Oracle filesystem user)
- created a base directory – /d02/ebs/R12VIS
- Change ownership and grant write permission to dbaerp group
- cd /d02
- mkdir -m 775 -p /ebs/R12VIS
- chown -R oraerp:dbaerp ebs
- Kernel parameters (Related to Oracle E-Business Suite – R12) – After making any changes inthe system file, use “sysctl -p” command tor restart the system to invoke the new settings. vi /etc/sysctl.conf
- kernel.shmmax = 68719476736
- kernel.shmall = 4294967296
- kernel.sem = 250 32000 100 128
- fs.file-max = 6815744
- net.ipv4.ip_local_port_range = 9000 65500
- net.core.rmem_default = 262144
- net.core.wmem_default = 262144
- net.core.rmem_max = 4194304
- net.core.wmem_max = 1048576
- $ vi /etc/security/limits.conf
- Added below entries in the file
- hard nofile 65536
- soft nofile 4096
- hard noproc 16384
- soft noproc 2047
- Added below entries in the file
- vi /etc/hosts – make sure hosts file is formatted as below
- [ip_address] [node_name].[domain_name] [node_name]
- vi /etc/sysconfig/network – Pls make sure it is formatted as below
- HOSTNAME=[node_name].[domain_name]
- vi /etc/sysconfig/networking/profiles/default/network – make sure ‘network’ file doesnot exist. In my case, it was not there.
- vi /etc/resolv.conf – Add or update the following entries to these minimum settings on each node
- options attempts:5
- options timeout:15
- OS Library patch for Oracle HTTP server – Downlaod and apply the patch 6078836 from MOS to fix an issue with the Oracle HTTP server (missing libdb.so)
RPM required for Oracle E-Business Suite R12.1.1 – As per Metalink Note ID – 761566.1
- Check Linux Kernel – uname -r

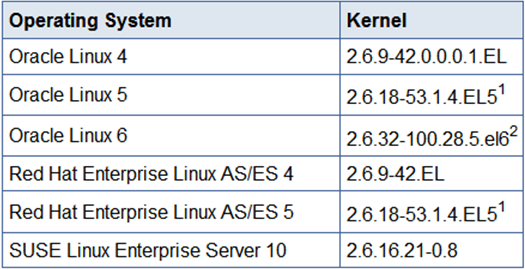

- OS Kernel
- Hence for my RHEL5 update 3, following RPMs are needed – In my case, many of them were already installed and some of these RPMS need to be installed.
- Command used to query the RPM –
- rpm -qa –queryformat “%{NAME}-%{VERSION}.%{RELEASE} (%{ARCH})\n” |grep <RPM_NAME>
- openmotif21-2.1.30-11.EL5.i3861
- xorg-x11-libs-compat-6.8.2-1.EL.33.0.1.i386
- binutils-2.17.50.0.6-9.0.1.x86_642 – For update 3
- gcc-4.1.2-14.el5.x86_64
- gcc-c++-4.1.2-14.el5.x86_64
- glibc-2.5-18.i686 (32-bit)
- glibc-2.5-18.x86_64
- glibc-common-2.5-18.x86_64
- glibc-devel-2.5-18.i386 (32-bit)
- glibc-devel-2.5-18.x86_64
- libgcc-4.1.2-14.el5.i386
- libgcc-4.1.2-14.el5.x86_64
- libstdc++-devel-4.1.2-14.el5.i386
- libstdc++-devel-4.1.2-14.el5.x86_64
- libstdc++-4.1.2-14.el5.i386
- libstdc++-4.1.2-14.el5.x86_64
- libXi-1.0.1-3.1.i386
- libXp-1.0.0-8.1.el5.i386
- libXp-1.0.0-8.1.el5.x86_64
- libaio-0.3.106-3.2.i386
- libaio-0.3.106-3.2.x86_64
- libgomp-4.1.2-14.el5.x86_64
- make-3.81-1.1.x86_64
- gdbm-1.8.0-26.2.1.i386
-
- gdbm-1.8.0-26.2.1.x86_64
- sysstat-7.0.0-3.el5.x86_64
- util-linux-2.13-0.45.el5.x86_64
- compat-libstdc++-296-2.96-138.i386
- compat-libstdc++-33-3.2.3-61.i386
- Additionally few of the RPMs are required for 11gR1 database (which is bundles with 12.1.1 release) on database tier.
- compat-libstdc++-33-3.2.3-61.x86_64
- elfutils-libelf-devel-0.125-3.el5.x86_64
- elfutils-libelf-devel-static-0.125-3.el5.x86_64
- libaio-devel-0.3.106-3.2.x86_64
- unixODBC-2.2.11-7.1.i386
- unixODBC-devel-2.2.11-7.1.i386
- unixODBC-2.2.11-7.1.x86_64
- unixODBC-devel-2.2.11-7.1.x86_64
- kernel-headers-2.6.18-8.el5.x86_64

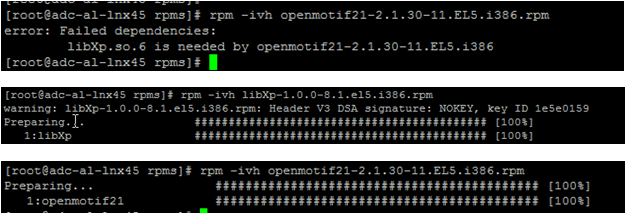

- I had some error installing some of these but those were dependecies error viz. error when installed openmotif21-2.1.30-11.EL5.i3861
Installation Process
- Media Check – MD5 Checksums for R12.1.1 Rapid Install Media [ID 802195.1]
- cd /d03/R12.1.1_X86 –> Staging area
- Download md5sum_xxxxx.txt –> Depending on OS

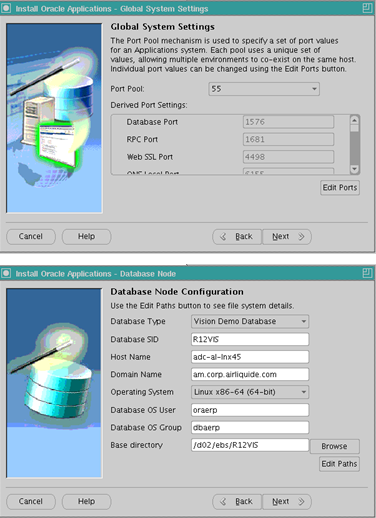

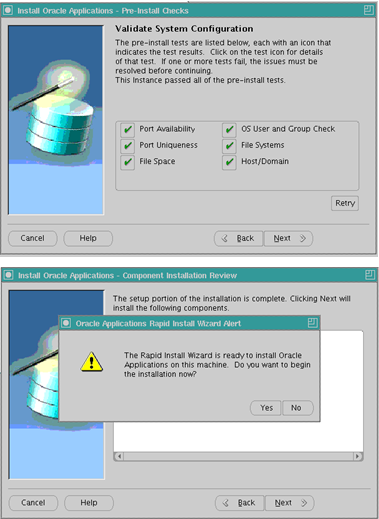

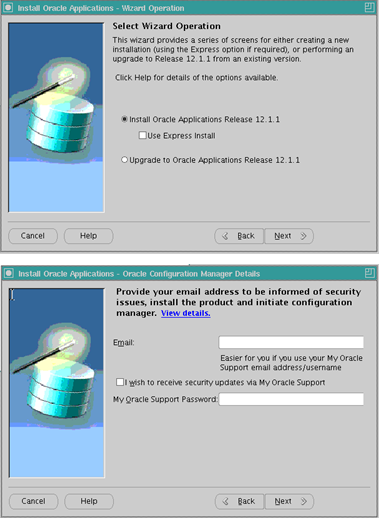

- Standard Installation – Login as root
- Export Display – Start the VNC process (if not done already) and export the display

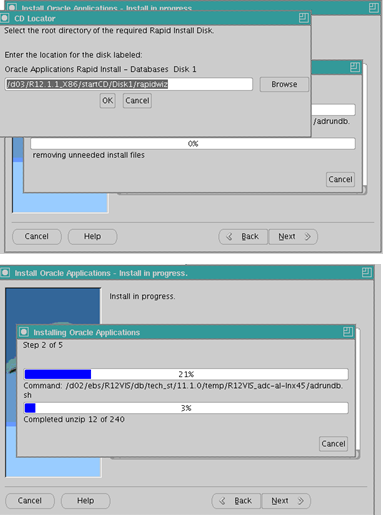

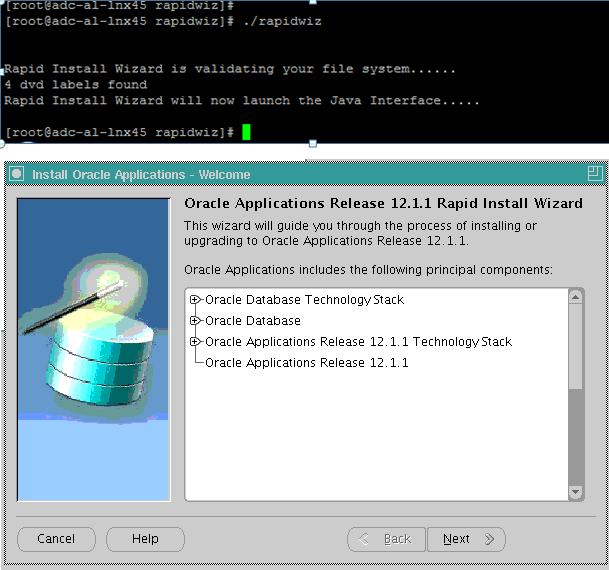

- Cd to staging area – $ cd /d03/R12.1.1_X86/startCD/Disk1/rapidwiz
- /rapidwiz
Issues and resolution

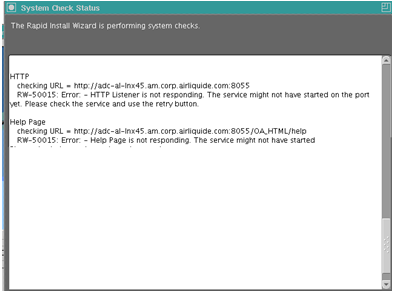

- Post Installation setp threw fllowing errors
- HTTP Error
- Login Pager Error
- JSP Error
- Virtual Page Error
- Help page error
- Troubleshooting step

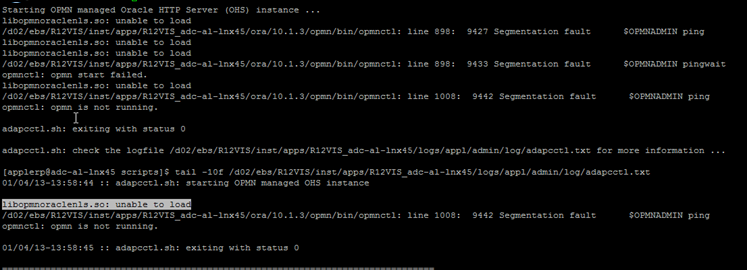

- I stopped all the services and tried starting it again all using adstrtall command but adopmnctl command errored out.
- I stopped all the services and tried starting it again all using adstrtall command but adopmnctl command errored out.

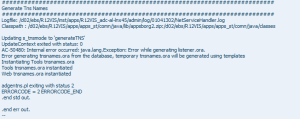

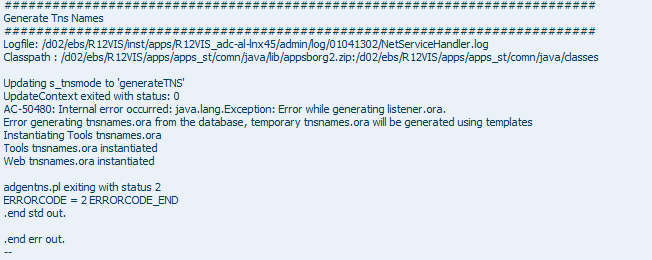

- Upon investigation, I saw some error related to APPS listener in the Autoconfig log file
- Researching error over Metalink, I found a Metalink Note – 1324667.1 and performed the actions as advised
- Clean the Data Topology Model
- sqlplus apps/apps_password
- Exec FND_CONC_CLONE.SETUP_CLEAN;
- COMMIT;
- EXIT
- Run autoconfig on all tier – first on DB tier and then app tier.
- Clean the Data Topology Model

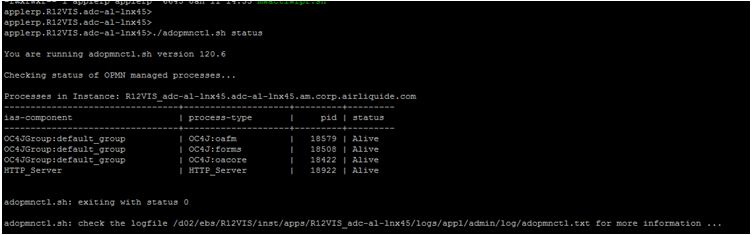

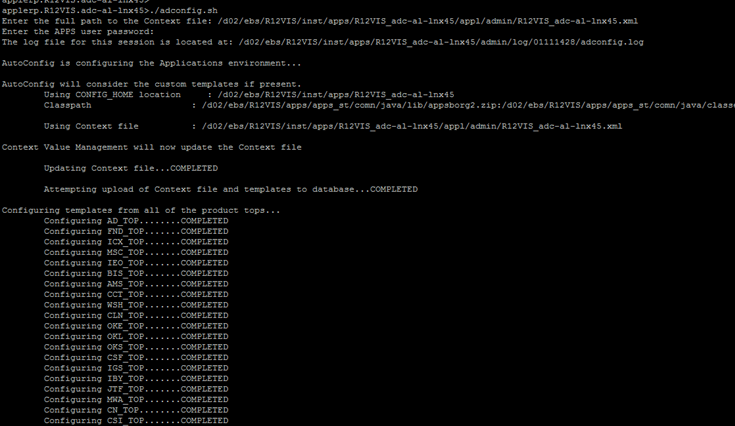

- Autoconfi completed on both the nodes successfully. I started the services using adstpall. All the services came up successfully but Apache.

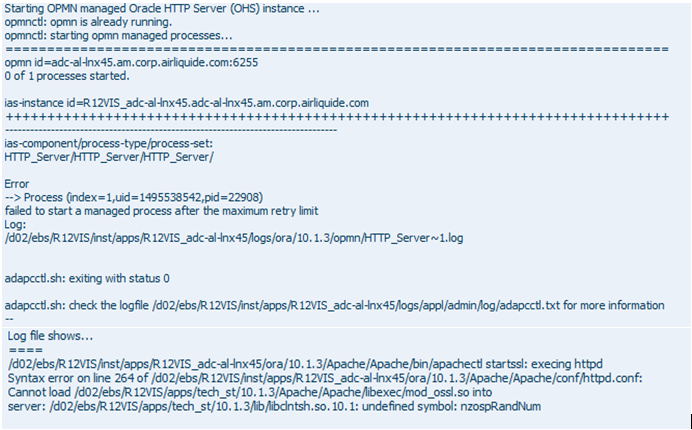

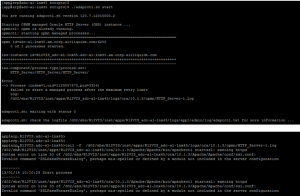

- Apache still not coming up and is giving error. Error log shows
- Error log was pointing to libclntsh.so.10.1. This file was very much there in 10.1.2_HOME/lib and 10.1.3_HOME/lib as well. I googled a lot and every forum/thread was mentioning that this file should be there in lib as well as lib32. I didnot find lib32 folder either in 10.1.2_HOME or in 10.1.3_HOME
- Pls remember I had already applied the patch 6078836 – which is a OS library patch and required for a known HTTP issue.
- Hence I thought to create a lib32 folder under both the homes and create a soft link to the actual physical location
- created lib32 folder in $10.1.2_ORACLE_HOME & $10.1.3_ORACLE_HOME
- created soft link for libclntsh.so.10.1
- ln -s /d02/ebs/R12VIS/apps/tech_st/10.1.2/lib/libclntsh.so.10.1 libclntsh.so
- ln -s /d02/ebs/R12VIS/apps/tech_st/10.1.3/lib/libclntsh.so.10.1 libclntsh.so
- Restarted apache and got another error this time. Error related to libclntsh.so was no more there.
- This error was pointing to some SSL configuration in httpd.conf file. Hence commented the said configuration.
- # Include the SSL definitions and Virtual host container
- #include “/d02/ebs/R12VIS/inst/apps/R12VIS_adc-al-lnx45/ora/10.1.3/Apache/Apache/conf/ssl.conf”
- Restarted Apache. This resovled the apache issue and all the services came up without any issue.

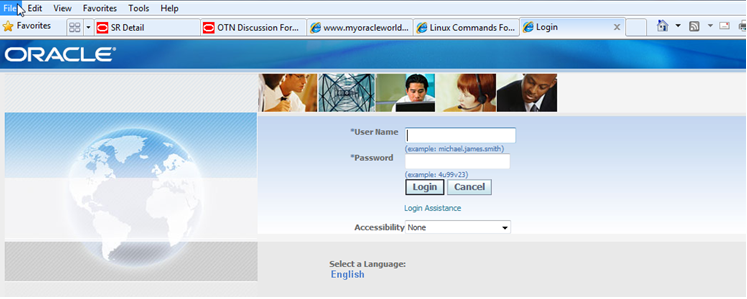

- Launched the login page and I was able to see the login page
-Anand
